Engineering the response to destructive drilling dynamics.

Vibration management, engineered into the drill bit.

The Evolution Drill Bit integrates mechanical damping at the cutting face. Controlled relative movement and recovery within the bit are intended to absorb, isolate or attenuate a portion of damaging torsional energy before it travels through the drill string and wider system.

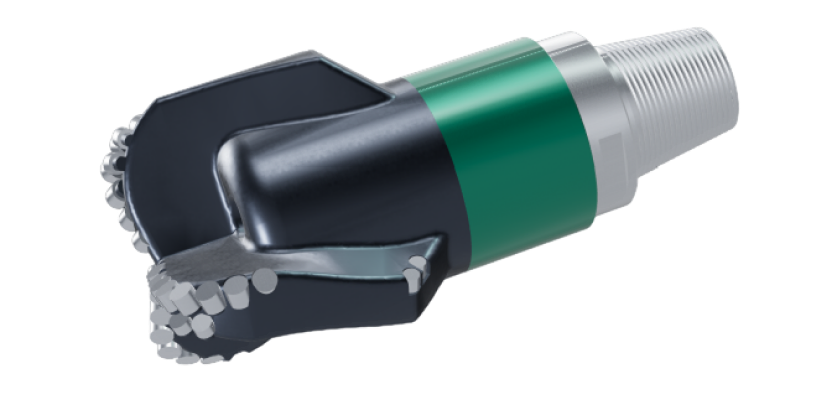

Evolution Drill Bit integrated assembly rendered from the corrected v7 engineering animation
PRODUCT / INTACTIntegrated assembly
TECH / 01

01 — THE DRILLING CHALLENGE

Vibration can be hard to detect at the surface.

Wireframe view derived from the corrected Evolution Drill Bit v7 engineering model
MODEL / STRUCTUREDynamic loading begins at the cutting structure

High-frequency torsional oscillation (HFTO) is a high-speed torsional drilling dysfunction linked to interaction between the cutting structure and formation. Conventional surface measurements may not reveal it. Along with stick/slip and repeated cutter- and bit-impact events, these loads can repeatedly load and unload the cutting structure, affecting drilling efficiency, cutter condition and the wider system.

Where PDC cutters are used, these loads may cause chipping, spalling, delamination or premature cutter failure. They may also damage drill strings and top drives, increase component wear, disrupt drilling and lead to unplanned trips or a higher cost per drilled metre.

Cutter damageComponent wearInconsistent drillingUnplanned trips

02 — HOW THE EVOLUTION DRILL BIT WORKS

How the damping mechanism responds.

The mechanism responds to damaging torsional energy while the drill bit continues operating within its approved parameters.

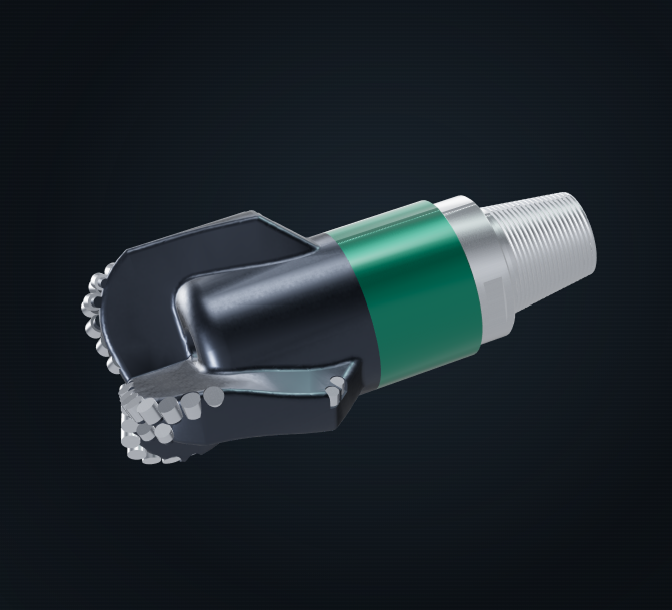

Integrated Evolution Drill Bit assembly from the corrected v7 animationINTEGRATE
01

Integrate

The vibration-damping mechanism is integrated into the drill bit at the cutting face.

Evolution Drill Bit baseline assembly state from the corrected v7 animationRESPOND
02

Respond

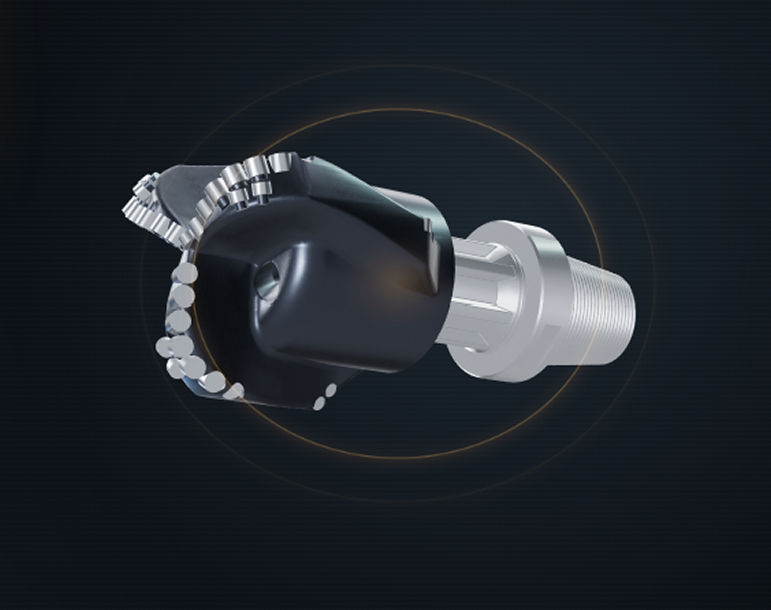

As the cutters engage the formation, HFTO, cutter-impact loads or other damaging vibration can develop. The internal mechanism responds through controlled relative movement.

Evolution Drill Bit damping interface from the corrected v7 animationMANAGE
03

Manage

This movement is intended to absorb, isolate or dissipate a portion of the damaging energy close to its source, before it travels farther through the drilling system.

Recovered Evolution Drill Bit assembly interface from the corrected v7 animationRECOVER
04

Recover

The mechanism recovers toward its neutral position while the integrated drill bit continues operating within its approved parameters.

03 — PRACTICAL DEPLOYMENT

Engineered around practical deployment

The Evolution Drill Bit combines an integrated damping mechanism, protected internal elements and serviceable construction for mining, exploration and oil and gas drilling environments.

01Integrated and protected

The damping mechanism is engineered directly into the drill bit at the cutting face, with protected internal elements designed for the intended operating environment.

02High-load, serviceable construction

Developed for the torque, tension and impact demands of heavy drilling, with practical inspection and maintenance requirements in mind.

03Cross-sector deployment

Developed for mining, exploration and oil and gas drilling environments.

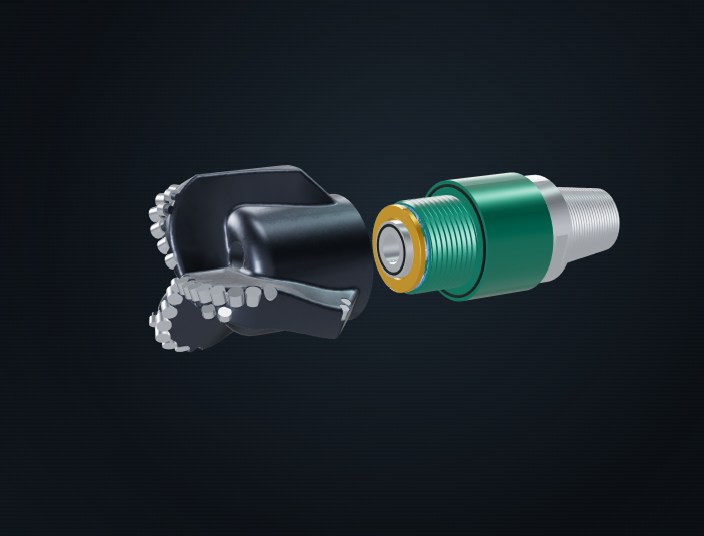

Evolution Drill Bit controlled interface separation from the corrected v7 animation
01Interface separation

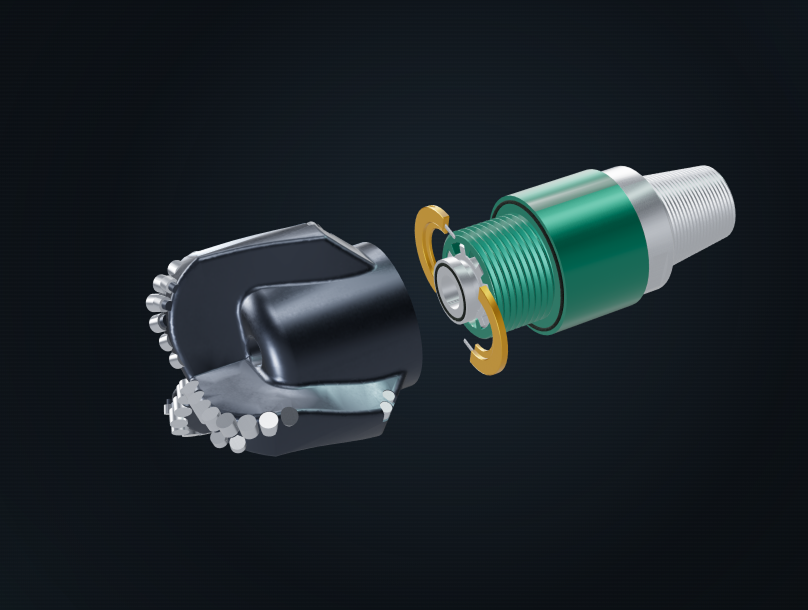

Evolution Drill Bit sleeve and locking-ring relationship from the corrected v7 animation
02Internal relationship
Evolution Drill Bit internal damping interface from the corrected v7 animation
03Component separation

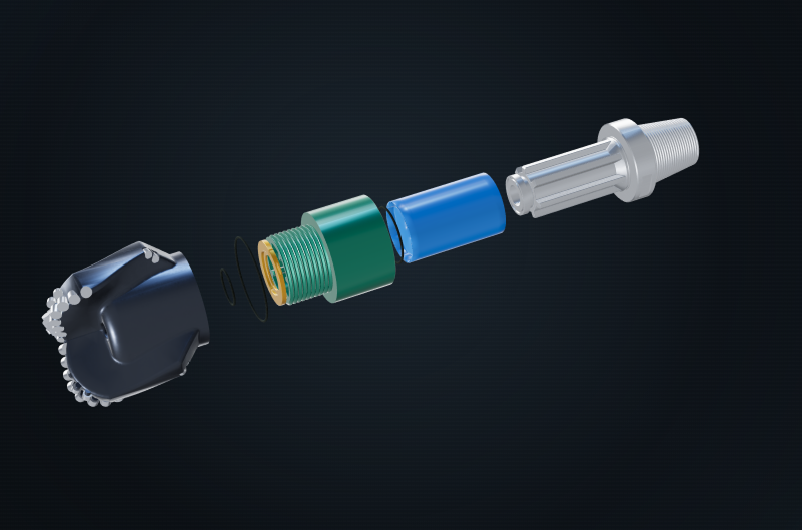

Evolution Drill Bit separated component relationship from the corrected v7 animation
04Exploded assembly

04 — SEE THE ENGINEERING IN MOTION

Optional engineering detail

View the assembly sequence.

Open sequence

Open the 3D assembly animation to see how the components fit together, or inspect the stills below.

Play the 3D assembly animation

Baseline Evolution Drill Bit state from the corrected v7 animation
01 / PROBLEMBaseline assembly

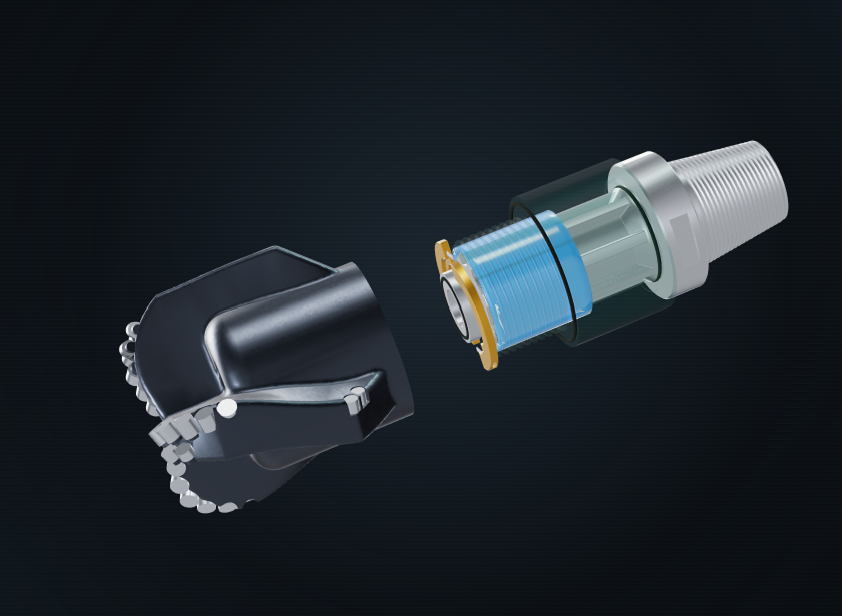

Damping interface shown within the corrected Evolution Drill Bit v7 animation
02 / DAMPInternal damping interface
Evolution Drill Bit separated component view from the corrected v7 animation
03 / EXPLAINSeparated components

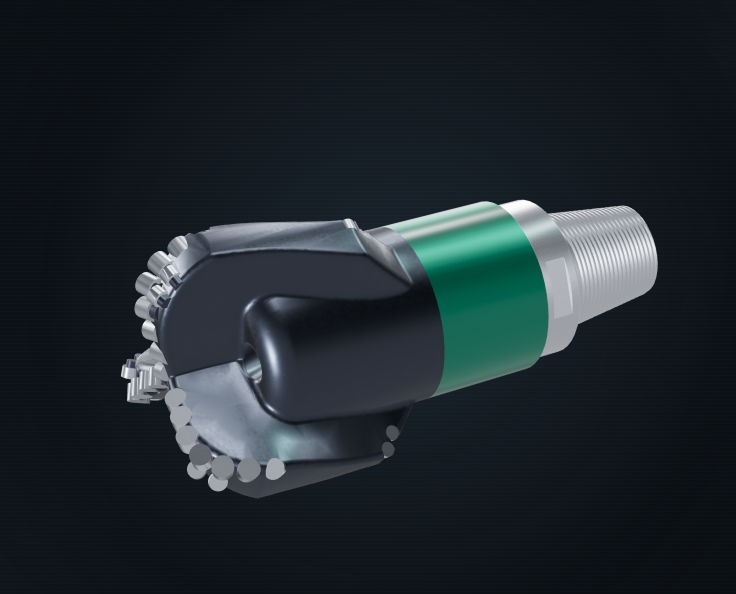

Completed Evolution Drill Bit assembly from the corrected v7 animation
04 / RESULTIntegrated assembly
